Model of E-rickshaw
Electric Rickshaw Manufacturers in Faridabad
Battery Operated E-Rickshaw or Electric Rickshaw are one of the preferred model of transportation for passengers. They are gaining popularity as they are alternative to petrol, diesel or CNG driven vehicles. Hence are eco-friendly and do not add to the carbon dioxide level in air. The cost of commuting is comparably less and comfortable. Visit Mac Auto India to buy Electric Rickshaw in all over India our precious customers can avail this product at pocket friendly price.
MAC BOLT FEATURES
Cloud Based Mobility Platform
Simplify your mobility complexity, make real-time decisions & have access to information when offline.
Reverse Parking Sensor
Remove the stress out of parallel parking in a tight spot without the worry of accidents and make it easier to maneuver in traffic.
Gps With Insurance
Real time step-by-step information of directions, unauthorized use notification & we look after your insurance, so you can look after everything else.
Unveil Your Color
MAC BOLT Electric Rickshaw SPECIFICATIONS

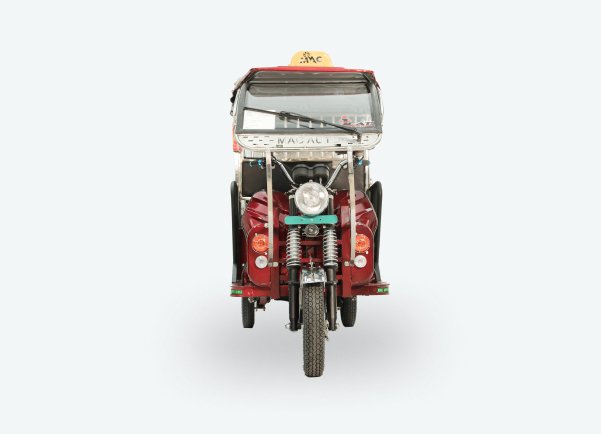

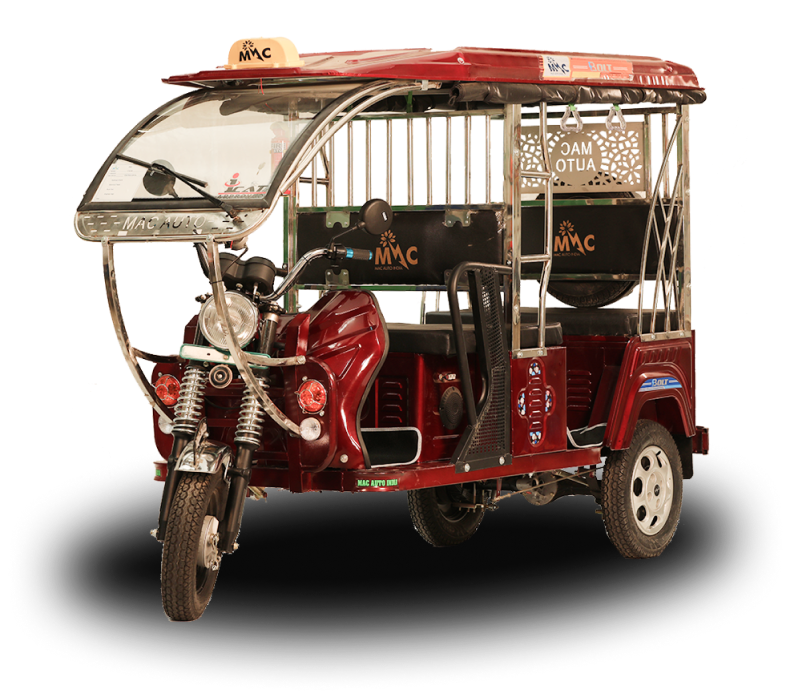

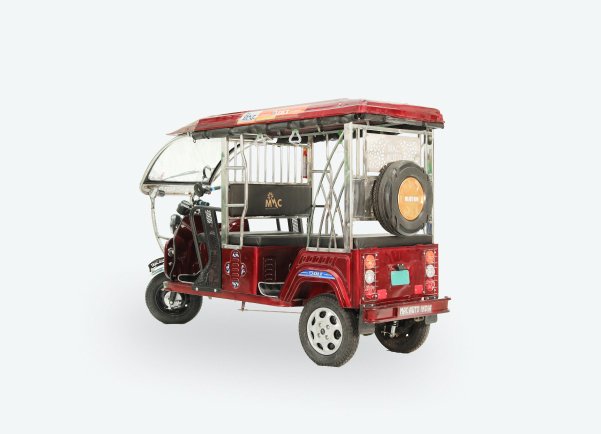

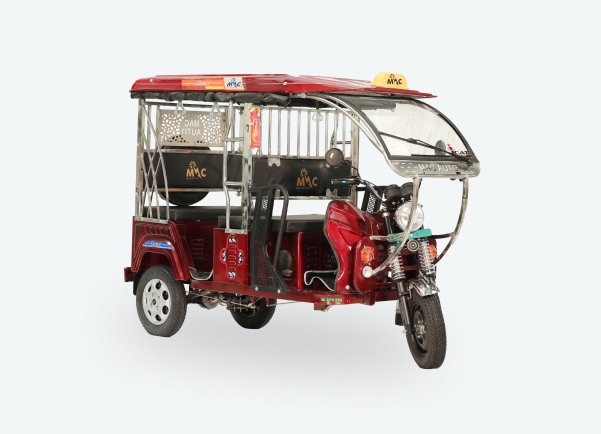

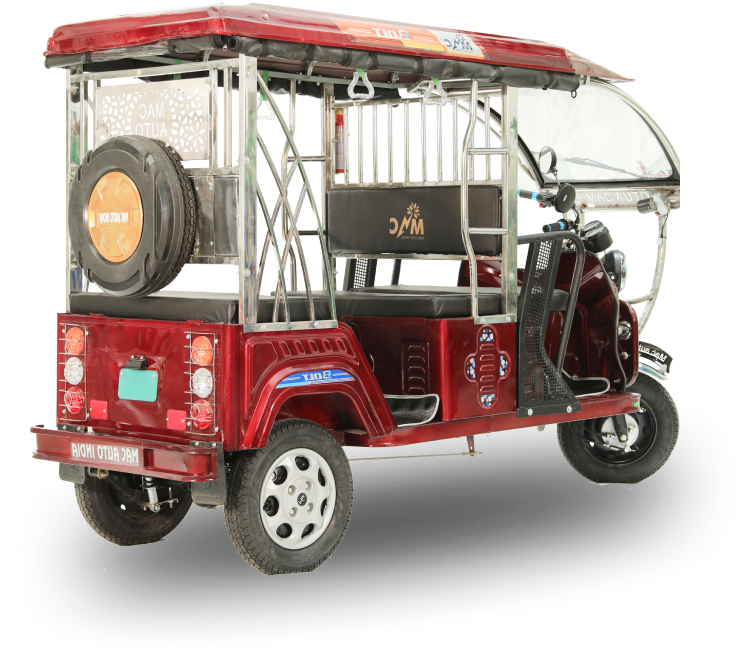

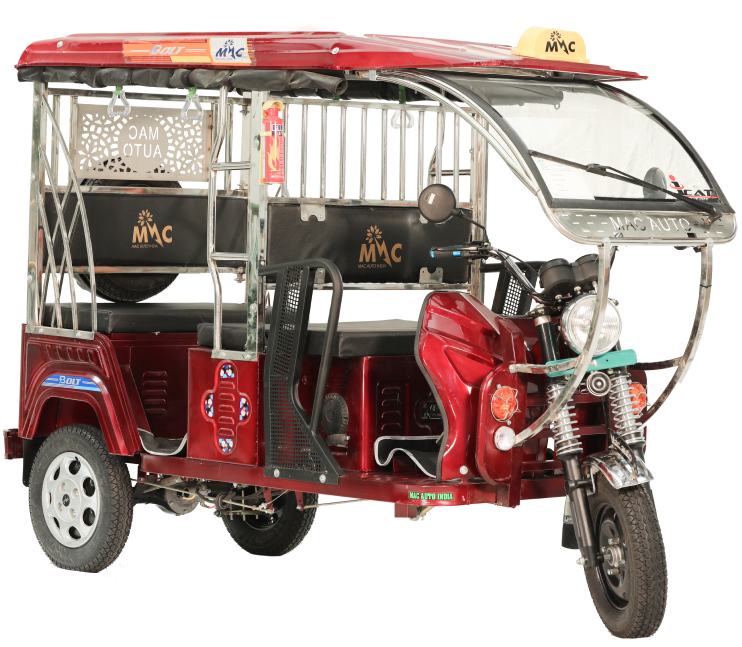

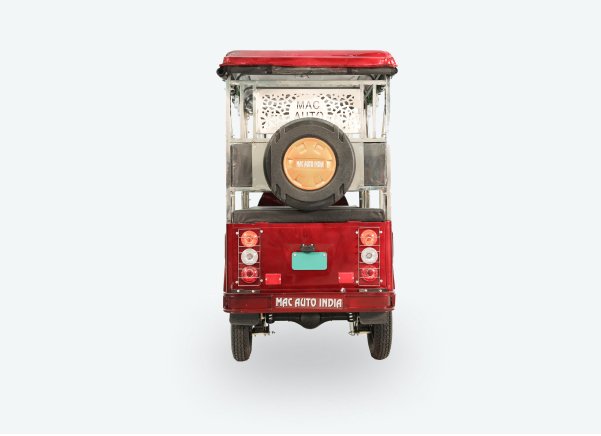

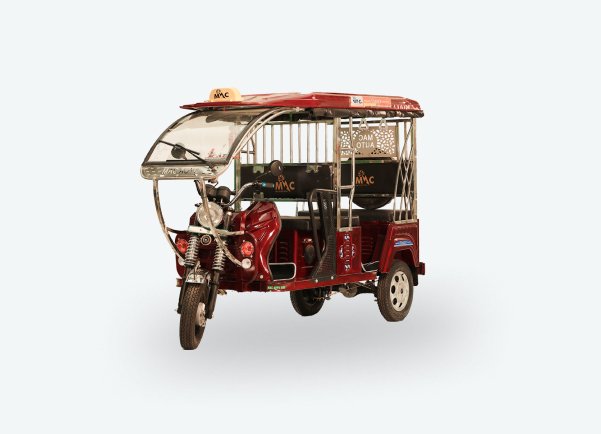

IMAGE GALLERY
Product Specification & features
Mac Bolt
Mac Bolt+
Mac Bolt+
| Comfort | |||
| Stylish cushion seat |
 |
|
|
| Stylish Bumper & Front Panel |
|
|
|
| Brighter Headlight |
|
|
|
| Realistic graphics |
|
|
|
| High relaxable cushion seat | HITLON/BONDED | HITLON/BONDED | HITLON/BONDED |
| Armrest | X |
|
|
| Rear shock absorber | X |
|
|
| Security | |||
| Hand gripper |
|
|
|
| Handle locking | X |
|
|
| Safety | |||
| Front Brake sensor |
|
|
|
| Hand Brake system |
|
|
|
| Rear brake sensor |
|
|
|
| TRANSMISSION : | |||
| Wheel Drive | Rear Wheel Drive | Rear Wheel Drive | Rear Wheel Drive |
| Transmission | Differential | Differential | Differential |
| Gear ratio | 0.417361111 | 0.417361111 | 0.417361111 |
| BATTERY CAPACITY : | |||
| Battery Connection | 4 battery in Series | 4 battery in Series | 4 battery in Series |
| PERFORMANCE : | |||
| Runing Distance | 90-100km/charage | 90-100km/charage | 90-100km/charage |
| Turning Circle diameter | 2.8m | 2.8m | 2.8m |
| CHASSIS : | |||
| Suspension | Leaf Spring & Rear Shocker | Leaf Spring & Rear Shocker | Leaf Spring & Rear Shocker |
| Braking System | Front & Rear Rods | Front & Rear Rods | Front & Rear Rods |
| Front Brake Dia | 130mm | 130mm | 130mm |
| Rear Brake Dia | 160mm | 160mm | 160mm |
| Steering System | Steering Handle | Steering Handle | Steering Handle |
| Wheels /RIM* | 2.15X12"(MS RIM) | 2.15X12"(MS RIM) | 2.15X12"(MS RIM) |
| Tyre | Tube Type 3.75x12" | Tube Type 3.75x12" | Tube Type 3.75x12" |
| OUTER DIMENSION : | |||
| Length | 2760mm | 2760mm | 2760mm |
| Width | 940mm | 940mm | 940mm |
| Hight | 1770mm | 1770mm | 1770mm |
| Wheel Base | 2125mm | 2125mm | 2125mm |
| Ground clearance from chassis | 180mm | 180mm | 180mm |
| Seating Capacity : | |||
| Seating Capacity : | 4 Passenger + 40Kg | 4 Passenger + 40Kg | 4 Passenger + 40Kg |
| WEIGHT : | |||
| Vehicle Kerb Weight | 380 Kg | 380 Kg | 380 Kg |
| Vehicle Gross Weight | 720 Kg | 720 Kg | 720 Kg |
| MOTOR DETAILS : | |||
| Motor Type | BLDC | BLDC | BLDC |
| Motor Characteristic | 48V1000W/3200RPM | 48V1000W/3200RPM | 48V1000W/3200RPM |
| Water Ingress | IP 65 | IP 65 | IP 65 |
| Colling Type | Air Cool with fan | Air Cool with fan | Air Cool with fan |
| CONTROLLER DETAILS : | |||
| Controller Features | Overload Protection | Overload Protection | Overload Protection |
| Reating | 50Amp | 50Amp | 50Amp |
| No. of Mosfets | 24 | 24 | 24 |
| Rating Volt | 48V | 48V | 48V |
| Water Ingress | IP 65 | IP 65 | IP 65 |
| Cooling Type | Heat Sink | Heat Sink | Heat Sink |
| FEATURES | |||
| Stepeny cover | X |
|
|
| Front Glass | X |
|
|
| Central Locking |
|
|
|
| Tool kit |
|
|
|
| FM radio |
|
|
|
| Mp3 |
|
|
|
| Rear bumper |
|
|
|
| Fire extinguisher |
|
|
|
| Breake Chargable System |
|
|
|
| Front & Rear mud flap |
|
|
|
| Driver & Passenger Foot mat | X | X |
|
| Curtains |
|
|
|
| Led With Rear Camera | X | X |
|
| Mobile Holder | X |
|
|
| Front & Rear light mesh |
|
|
|
| Alloy Wheel | X | X |
|
| SS Frames | Optional | Optional | Optional |
| LED Screen & Camera | Optional | Optional | Optional |
| Running distance with 120AH Battery & varies as per Load. | |||
| As per Comapny WARRANTY Policies | |||
