Model of E-rickshaw
MAC VENDING CART FEATURES

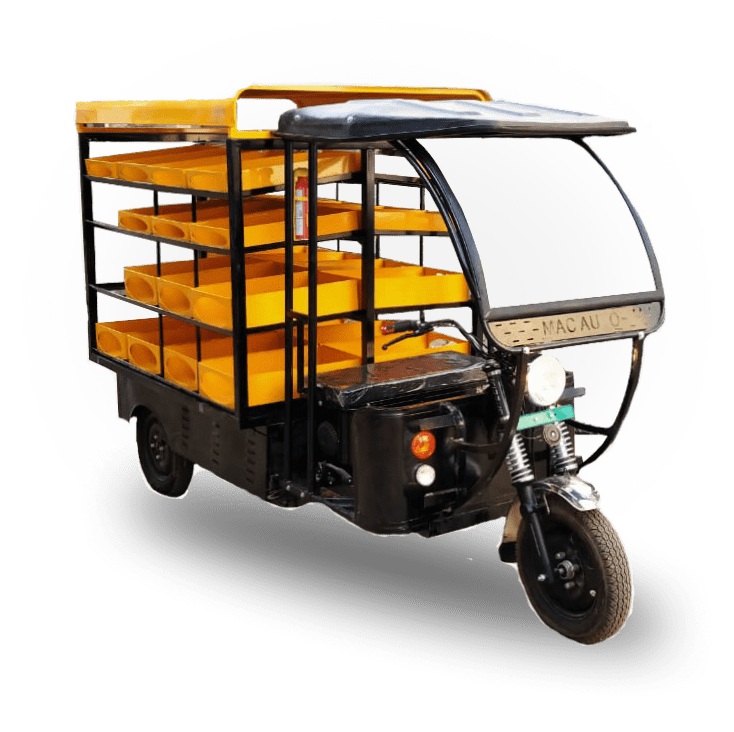

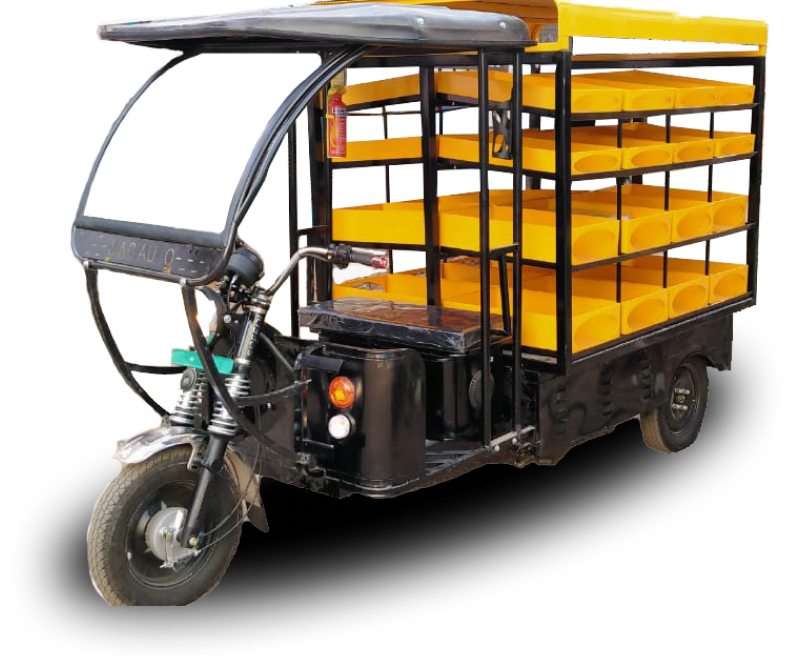

Battery Operated E Rickshaw Food Cart- Vending Cart
Our consistent efforts and dedication enable us to carve a niche as the most trustworthy manufacturer and supplier of Electric Food Cart , Battery Operated E Rickshaw Food Cart. Vegetable Vending Cart It is available in stainless steel body for better and longer life. It is designed with larger legroom and a wider body for providing comfort to the driver. Assembled with the use of pioneering techniques and top-grade parts, it can be bought from us at affordable rates. This vehicle is used in public places for cooking, serving, and selling food items. The portable pulse charger of this Electric Food Cart saves electricity and enhances battery life.
- Certified by ICAT.
- Running costs are as low as 40 paise per km.
- Travels for 100 km after charging for 3-4hours.
- Heavy-gauge, powder-coated, seamless tube chassis.
- A strong, rugged body that makes other e-rickshaws appear rickety in comparison.
- Distinctive rounded edges and high backrest for greater comfort.
- Heavy-duty telescopic front shockers and heat-treated leaf spring rear suspensions for greater impact absorption.
- Rivet-less, seamless seats are designed to minimize jolts and shakes on rough roads.
- Built with specially developed, impact-resistant, fire-retardant plastic which makes it safer, more durable.
- Best quality material combined with great workmanship makes it more resistant to the elements.
- Ergonomically engineered design, easy to maneuver in narrow spaces.
- Non-corrosive, waterproof body with UV stabilized fade-proof colors.
- Very spacious, with ample legroom.
- Customization offered.
Mobile Business Concept
Business on wheels really goes to where the customers are, instead of waiting for them to come. This concept has been designed keeping in mind the dire needs of today’s corporate audiences who lack time.
Application For Use
MAC Vending Cart is a designed freightage solution for Logistics, FMCG, Industrial Goods, Auto Components & E-commerce industries.
Cost Effective
Renowned for its efficiency in low running cost and low maintenance cost, the MAC Junk is a non-compromising solution to collect waste.
MAC VENDING CART SPECIFICATIONS
Experience new dimensions with the Battery Operated E Rickshaw Food Cart and be Future Ready!

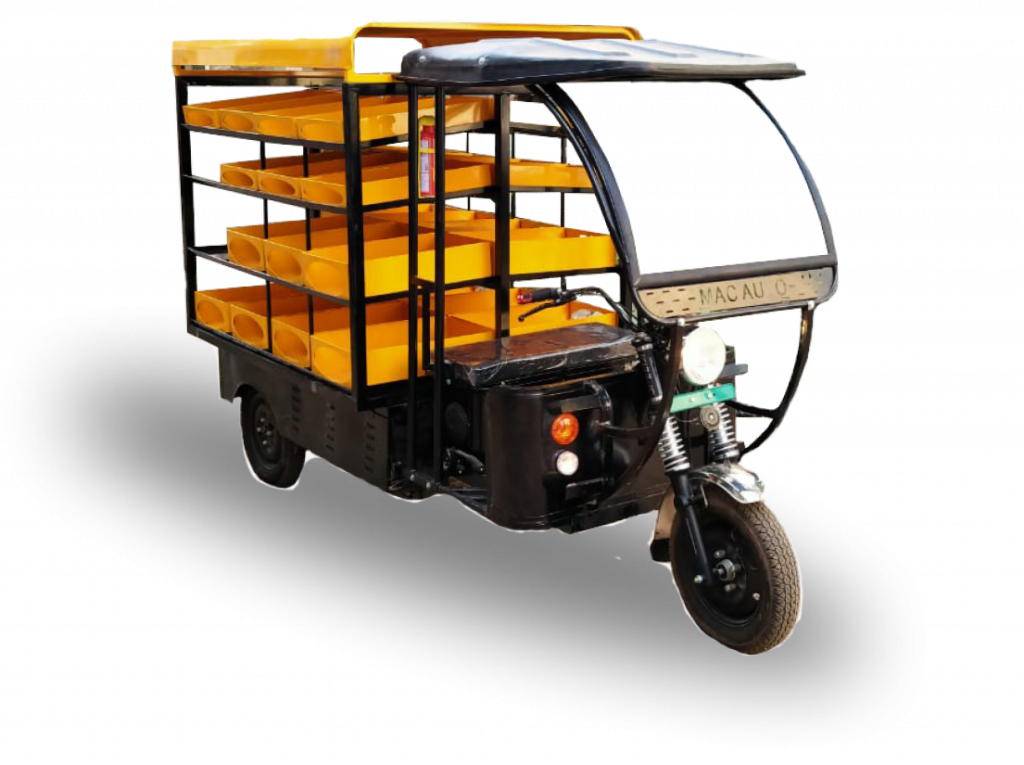

IMAGE GALLERY
Mac Vending Cart Technical Specification
Mac Vending Cat
Mac Vending Cat+
Comfort | ||
Stylish Cushion Driver Seat | ||
Stylish Bumper & Front Panel | ||
Brighter Headlight | ||
Realistic Graphic | ||
Comfort | ||
High Relaxable Cushion seat | Hitlon / Bonded | Hitlon / Bonded |
Armrest | x | |
Rear Shock Absorber | x | |
Security | ||
Hand Gripper | ||
Handle Locking | x | |
Safety | ||
Front Brake Sensor | ||
Hand Brake System | ||
Rear Brake Sensor | ||
Transmission | ||
Wheel Drive | Rear Wheel Driver | Rear Brake Sensor |
Transmission | Differential | Differential |
Gear Ration | 10:01 | 10:01 |
Battery Capacity | ||
Battery Connection | 4 Battery in Series | 4 Battery in Series |
Performance | ||
Running Distance | 90-100Km / Charge | 90-100Km / Charge |
Turning Circle diameter | 2.8m | 2.8m |
Chassis | ||
Suspension | Leaf Spring & Rear Shocker | Leaf Spring & Rear Shocker |
Brake System | Front & Rear Rods | Front & Rear Rods |
Front Brake Dia | 130mm | 130mm |
Rear Brake Dia | 160mm | 160mm |
Steering System | Steering Handle | Steering Handle |
Wheel / Rim | 215x12"(MS RIM) | 215x12"(MS RIM) |
Tyre | Tube Type3.75x12" | Tube Type3.75x12" |
Outer Dimension | ||
Length | 2760mm | 2760mm |
Width | 940mm | 940mm |
Hight | 1770mm | 1770mm |
Wheel Base | 2125mm | 2125mm |
Ground Clearance form chassis | 180mm | 180mm |
Loading Capacity | ||
Loading Capacity | up to 800 kgs | up to 800 kgs |
Weight | ||
Vehicle Kerb Weight | 380kg | 380kg |
Vehicle Gross Weight | 800kg | 800kg |
Motor Details | ||
Motor Type | BLDC | BLDC |
Motor Characteristic | 48V1000W/32000RPM | 48V1000W/32000RPM |
Water Ingress | IP 65 | IP 65 |
Colling Type | Air Cool With fan | Air Cool With fan |
Controller Details | ||
Controller Features | Overload protection | Overload protection |
Reating | 50 Amp | 50 Amp |
No. of Mosfets | 24 | 24 |
Rating Volt | 48V | |
Water Ingress | IP65 | IP65 |
Cooling Type | Heat Sink | Heat Sink |
Controller Details | ||
Stepony Cover | Cloth | Cloth |
Front Glass | ||
Central Locking | x | |
Tool Kit | ||
FM Radio | ||
MP3 | ||
Rear Bumper | ||
Fire Extinguisher | ||
Brake Chargeable System | ||
Front & Rear mud flap | ||
Driver Foot Mat | x | x |
Mobile Holder | x | |
Front & Rear Light Mesh | ||
*Running distance with 120Ah Battery & Varies as per load |
